Rendering Reality – A Deep Dive into OpenGL and Graphics APIs
Graphics rendering is a crucial aspect for applications powering virtual reality to simulations, visualizations. As digital experiences become more immersive and visually complex, need for efficient, high-performance rendering techniques has grown significantly. Real-time rendering plays a vital role in applications by leveraging optimized graphics pipelines and hardware acceleration, developers can create visually stunning environments with realistic lighting, textures, enhancing user engagement.
Graphics APIs like OpenGL act as a vital link between software and graphics hardware, allowing developers to fully utilize GPUs for rendering. OpenGL stands out for its widespread adoption, cross-platform support, and extensive capabilities in both 2D and 3D graphics. This industry-standard API offers a versatile framework for graphics rendering on various platforms, from desktops to embedded systems.
Evolution of Graphics APIs
Evolution of Graphics APIs like OpenGL and DirectX revolutionized graphics by enabling hardware acceleration and standardizing interactions with GPUs. Shift from fixed function to programmable pipelines introduced custom shaders, enhancing control over rendering. Modern APIs like Vulkan and Metal push efficiency further with low-level hardware access and optimized performance for contemporary GPUs.
GPU vs. CPU Processing
CPU (Central Processing Unit) is designed for general-purpose computing by executing instructions sequentially with powerful cores, making it ideal for tasks needing high processing power in a step-by-step manner. While GPU (Graphics Processing Unit) is a specialized processor designed for high-throughput tasks like graphics rendering and parallel computing. Unlike CPUs with few cores, GPUs have thousands of simpler cores that work in parallel, enabling simultaneous operations for tasks needing large-scale parallel processing, calculations.
Understanding the OpenGL Rendering Pipeline
OpenGL pipeline transforms vertex data through vertex shaders, assembles primitives, and rasterizes them for rendering. Fragment shaders apply textures and lighting, while framebuffer operations handle blending and depth testing, ensuring high-quality visuals in multimedia applications.
Graphics Pipeline: Fixed Function vs. Programmable Pipeline

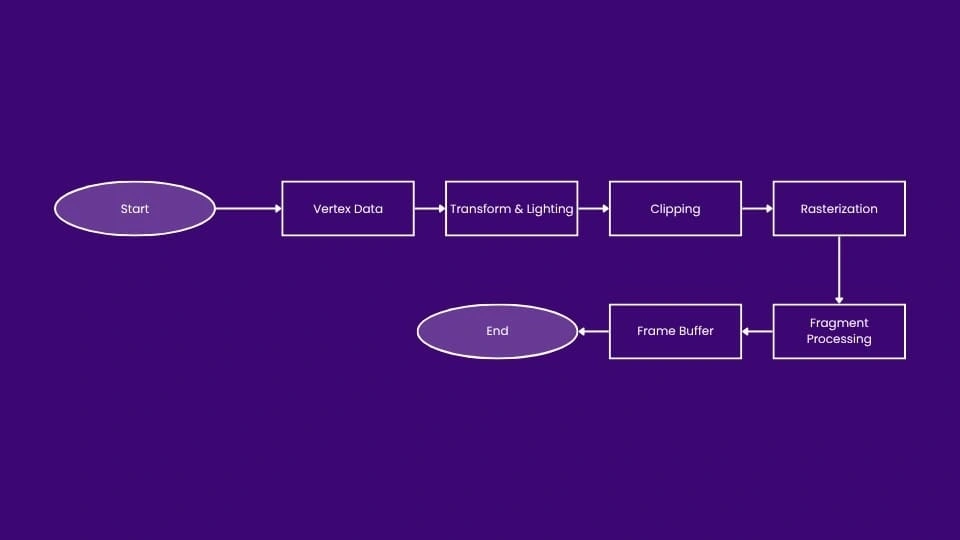

- Understanding Fixed Function Pipeline (FFP) in OpenGL
Fixed Function Pipeline (FFP) in OpenGL provided a predefined graphics processing sequence, simplifying development but lacking the flexibility of modern programmable shaders.
- Key Stages of the Fixed Function Pipeline
- Vertex Processing: The first step in the pipeline is transforming 3D coordinates into 2D screen coordinates. This is where the model’s vertices undergo transformations like scaling, rotation, and translation to place them in the correct position in the 2D world.
- Primitive Assembly: Once the vertices are processed, they are grouped into geometric primitives—points, lines, and triangles. These primitives are then prepared for rendering on the screen.
- Rasterization: The next step involves converting the primitives into pixel fragments. Rasterization is the process that turns vector data (points, lines, triangles) into a raster image or grid of pixels that can be displayed on the screen.
- Fragment Processing: During it textures and colors are applied to each pixel fragment to give the rendered image its final appearance. This stage handles operations like texture mapping and color blending.
- Output Merging: Finally, it is responsible for composing pixels into final image. It includes blending, depth testing, and writing resulting pixel data to the framebuffer.
- Understanding Programmable Function Pipeline (PP) in OpenGL
Programmable Pipeline replaced the Fixed Function Pipeline, enabling custom shaders and greater flexibility for advanced graphics in gaming and visualization.

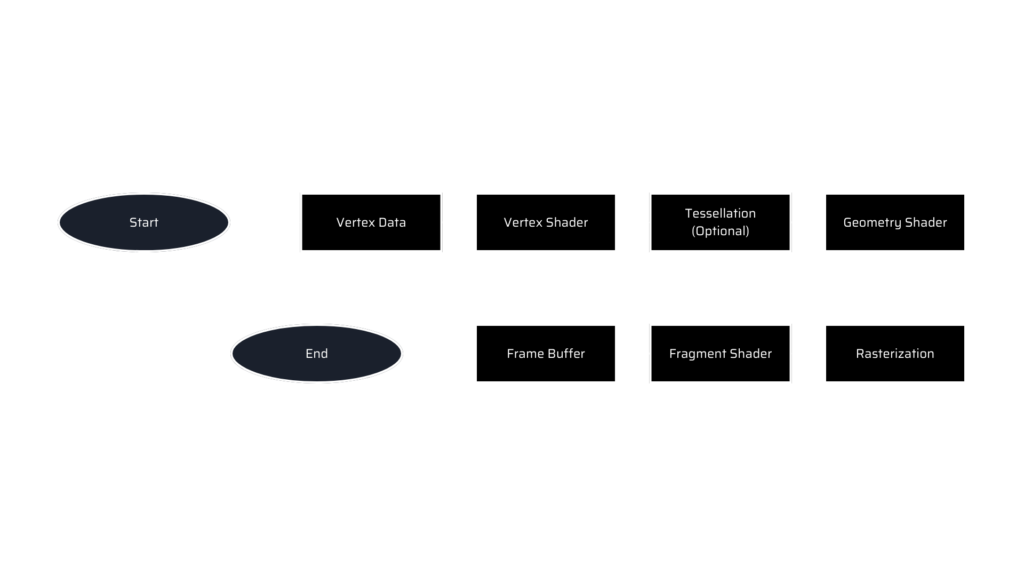

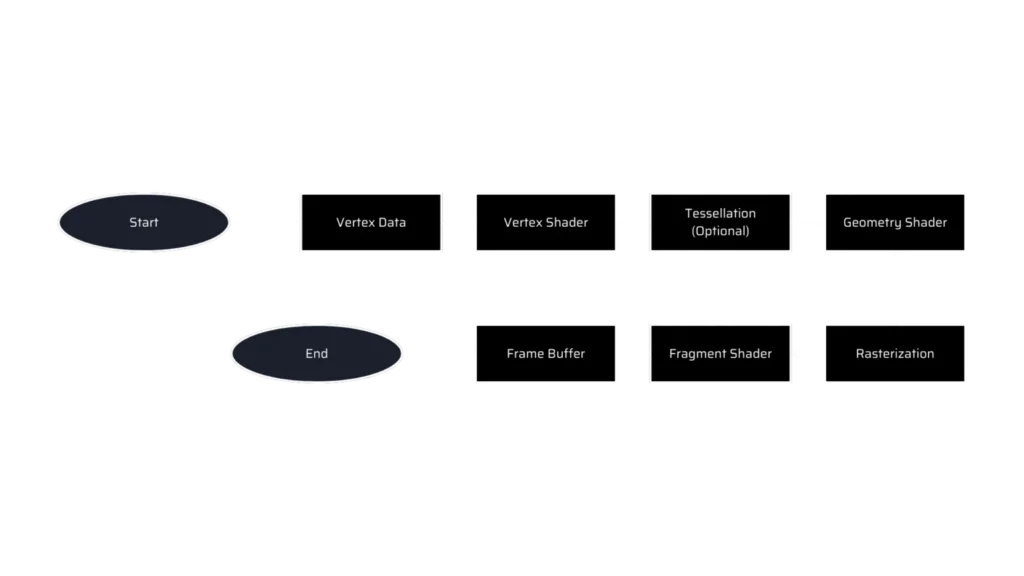

Key Stages of the Programmable Function Pipeline
- Vertex Shader: Vertex shader is the first programmable stage in the pipeline, processing each vertex of the object. It transforms the vertex position in 3D space, calculates lighting effects, and handles character animations by performing skinning. The resulting transformed vertex data is then passed to subsequent pipeline stages.
- Tessellation Shaders (Optional): Tessellation shaders are used to subdivide geometry, adding more detail to rendering process. This step is optional, but it allows for more granular control over the geometry by dynamically increasing detail in the rendered object, particularly useful for high-quality models in real-time rendering.
- Geometry Shader: Geometry shader operates on entire primitives (points, lines, and triangles). It allows for creation of new primitives, modifying existing ones, or generating additional geometry based on the input. This stage can be used for dynamic effects like creating particles, adding detail to objects, or generating complex shapes from simpler primitives.
- Fragment Shader: The fragment shader processes the final color and texture details of each pixel. The pixel shader calculates lighting effects, applies textures, handles transparency, and determines pixel appearance based on inputs from vertex and geometry shaders. It’s essential for realism and visual depth, enabling effects like reflections, shadows, and ambient occlusion.
The Benefits of Programmable Pipelines
The Programmable Pipeline allows developers to write custom shaders tailored to unique needs of their applications. This provides several key benefits:
- Customization: Each stage of the pipeline can be customized with shaders, giving developers full control over the rendering process.
- Optimization: Developers can optimize shaders for specific hardware and applications, improving performance and quality.
- Advanced Effects: With full control over each stage, developers can create advanced rendering techniques such as normal mapping, real-time shadows, and complex lighting models.
The Fixed Function Pipeline offers low flexibility, with limited control over stages and minimal support for advanced effects. In contrast, the Programmable Pipeline provides high flexibility, extensive control over stages, and comprehensive support for advanced effects.
Special Effects in OpenGL:

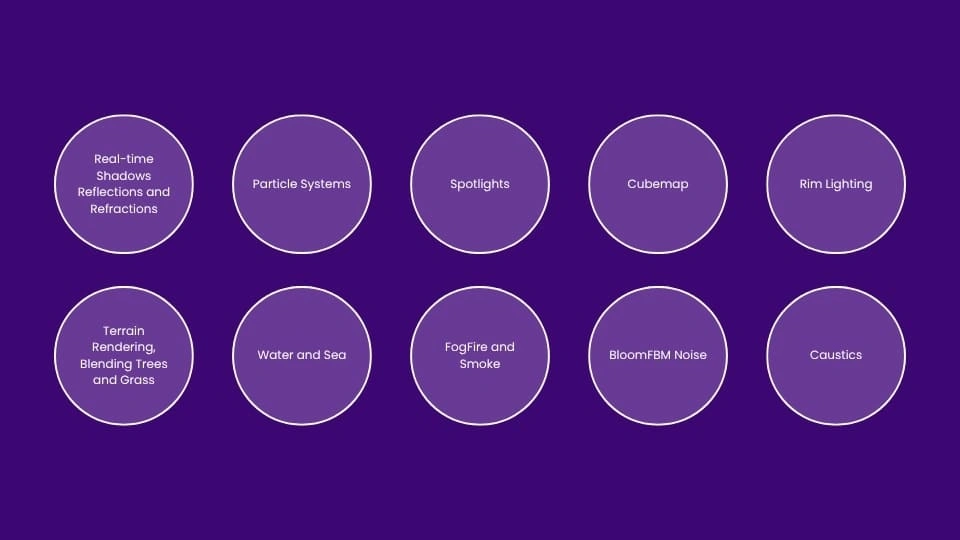

Special Effects in OpenGL
OpenGL and GPU Programming in various Industries
OpenGL and GPU programming are essential tools in a variety of industries, enabling the creation of high-performance graphics and real-time rendering for complex projects. Major sectors wise use:
- Automotive: OpenGL and GPU programming play a vital role in automotive applications, facilitating realistic 3D visualizations for interactive car model exploration in virtual showrooms. Improves safety designs and manage visual data in autonomous vehicles for navigation and object detection, transforming automotive design and testing with advanced rendering, real-time simulations, and interactive tools.
- Multimedia: OpenGL and GPU programming are essential for multimedia applications, providing high-quality 2D and 3D graphics rendering for movies, interactive media, and streaming. They enhance visual quality, reduce rendering times, and enable real-time effects in editing software, crucial for creating and manipulating content efficiently. Combination of OpenGL and GPU acceleration delivers superior performance in multimedia production and consumption.
- Healthcare: OpenGL and GPU programming play a key role in healthcare, especially for medical imaging and surgical planning. They generate 3D visualizations from CT and MRI scans for diagnoses and treatment planning, while GPU programming speeds up surgical simulations to provide high-quality images for medical training and pre-surgical preparation, enhancing decision-making and procedure efficiency.
- Industrial Automation: In industrial automation, OpenGL and GPU programming create 3D visualizations for manufacturing processes, streamline workflows, troubleshoot problems, and aid in robotic simulations for designing automation systems. These advanced technologies enhance monitoring, optimize systems in real time, and simulate complex setups, thereby improving efficiency and operational precision.
Overall, OpenGL and GPU programming have transformed modern graphics rendering, enabling high visual fidelity and real-time performance. The shift to programmable pipelines enables dynamic visual effects and optimized rendering efficiency in various fields beyond gaming, such as scientific visualization, medical imaging, and AR/VR due to OpenGL’s cross-platform compatibility. GPU advancements and shader programming continue to enhance its capabilities, with future innovations like real-time ray tracing and AI-driven rendering set to elevate OpenGL’s potential further. Mastering OpenGL empowers developers to create immersive, high-performance graphics applications.
MosChip, with its expertise in embedded systems, software development, and hardware design, supports OpenGL and GPU-enabled solutions for various industrial applications. Additionally, it leverages FPGA-based solutions for custom hardware acceleration, enhancing the performance of graphics pipelines.
